| Place of Origin: | China |
| Brand Name: | CRRC |
| Certification: | AAR, GOST,IRIS, TSI, OEM |
| Model Number: | 08 |
| Minimum Order Quantity: | 10 |
|---|---|
| Delivery Time: | 3 months |
| Payment Terms: | L/C OR T/T |
| Supply Ability: | 500 SET/ YEARS |
CRRC Taiyuan Co., Ltd. is a main factory for making and overhauling of diesel locomotive and electric locomotive, which can manufacture 10000 sets and repair 5000 sets. and our main advantagment is Railway freight wagon , products include the design and manufacture of gondola wagon, ballast hopper wagon, coal hopper wagon , flat wagon, tank trucks, automatic dumping cars etc...

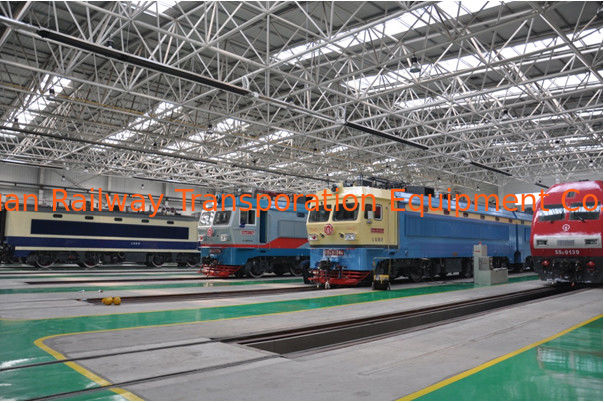

Can produce and overhaul many kinds of railway electric locomotive including: SS3, SS4, SS7C, SS7E, SS8, SS9 etc. The photos of these railway electric locomotives are the following:
|
Dimension ( LxWxH) (mm) |
11420x3200x4300 |
|
Axle arrangement |
B-B |
|
Length between bogie pivot centers |
5400 |
|
Wheel base/td> |
1800 |
|
Axle Number |
2 |
|
Track gauge (mm) |
1435 |
|
Height from top of rail to coupler center(mm) |
880±10 |
|
Draft gear |
13 type couple, buffers on both end |
|
Wheel diameter ( mm) |
840 |
|
Min. curve radius (m) |
60 |
|
Max. Speed (shunt/small operation) (km/h) |
30/60 |
|
Transmission mode: |
Double cycling disk hydraulic transmission,hydraulic |
|
Air brake and hand brake |
|
|
Coupler |
No.13 coupler and ST buffer |
|
Power of the engine(HP) |
360/380 |
|
Max. starting tractive effort(KN) |
105 |
