C80B(C80BH)standard gauge Stainless Steel body Coal Gondola wagon manufacture China

C80B(C80BH)standard gauge Stainless Steel body Coal Gondola wagon manufacture China

    • C80B(C80BH)standard gauge Stainless Steel body Coal Gondola wagon manufacture China
    • C80B(C80BH)standard gauge Stainless Steel body Coal Gondola wagon manufacture China
    • C80B(C80BH)standard gauge Stainless Steel body Coal Gondola wagon manufacture China
    • C80B(C80BH)standard gauge Stainless Steel body Coal Gondola wagon manufacture China
    • C80B(C80BH)standard gauge Stainless Steel body Coal Gondola wagon manufacture China
  • C80B(C80BH)standard gauge Stainless Steel body Coal Gondola wagon manufacture China

    Product Details:

    Place of Origin: Shanxi China
    Brand Name: CRRC
    Certification: AAR, GOST,IRIS, TSI, OEM

    Payment & Shipping Terms:

    Minimum Order Quantity: 20
    Price: 45000-60000
    Delivery Time: 6months
    Payment Terms: L/C OR T/T
    Supply Ability: 10000 SET/ YEARS
    Contact Now
    Detailed Product Description

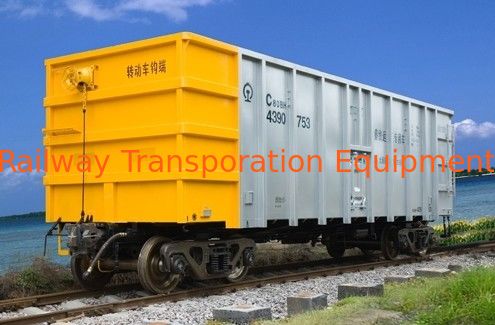

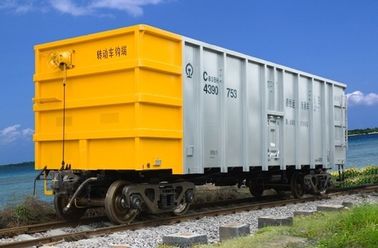

    C80B(C80BH)Stainless Steel body Coal Gondola wagon..

    Summary: This wagon specially utilized for coal transportation services for Datong-Qinhuangdao railway, three cars as a pair connected by drawbar. It is mainly comprised of car body, bogie, brake equipments, coupler and draft gear, etc. The car body is of stainless steel welded structure. The car adopts ZK5 or ZK6 bogie, air brake system equipped with 120 type control valve, NSW type hand brake, and one end of car pair equipped with 17 type coupler, other end equipped with 16 type coupler and MT-2 type draft gear.

    Main technical parameters:

    Loading capacity (t)

    80

    Tare weight (t)

    ≤20.5

    Volume(m3)

    84.8

    Operating speed (km/h)

    100

    Min. radius of curvature negotiable (m)

    145
