| Place of Origin: | Shanxi China |
| Brand Name: | CRRC |
| Certification: | AAR, GOST,IRIS, TSI, OEM |
| Minimum Order Quantity: | 20 |
|---|---|
| Price: | 45000-60000 |
| Delivery Time: | 6months |
| Payment Terms: | L/C OR T/T |
| Supply Ability: | 10000 SET/ YEARS |

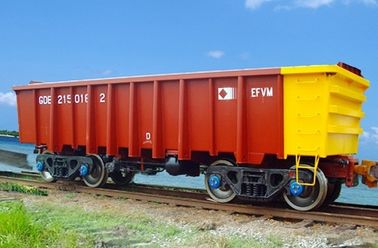

GDT Gondola wagon for Brazil
Summary:This 1060 gondola wagon specially utilized for ore transportation is suitable for operating on Brazil CVRD railway, control gondola wagon and slave car as a pair connected by drawbar. It is mainly comprised of car body, bogie, brake equipments, coupler and draft gear, etc. The car is of all steel welded structure, and adopts ride control type bogie, air brake system equipped with DB60 type control valve, wheel chain type hand brake, one end of the control car equipped with FR type rotary coupler, and one end of the slave car equipped with F type fixed coupler and MT-2 type draft gear....
Main technical parameters:
|
Loading capacity (t) |
108.5 |
|
Tare weight (t) |
≤21.5 |
|
Volume (m3) |
39.6 |
|
Gauge (mm) |
1600 |
|
Operating speed (km/h) |
80 |
|
Min. radius of curvature negotiable (m) |
120 |
