Place of Origin: | Shanxi China |
Brand Name: | CRRC |
Certification: | AAR, GOST,IRIS, TSI, OEM |
Minimum Order Quantity: | 20 |
---|---|
Price: | 45000-60000 |
Packaging Details: | in bulk |
Delivery Time: | 3 months |
Payment Terms: | L/C OR T/T |
Supply Ability: | 10000 SET/ YEARS |
OUr company could make and supply with you all kinds of flat wagon including container flat wagon ,

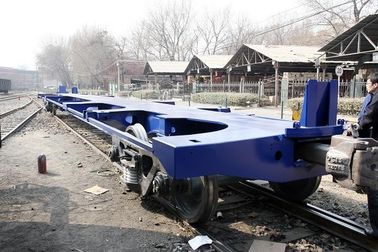

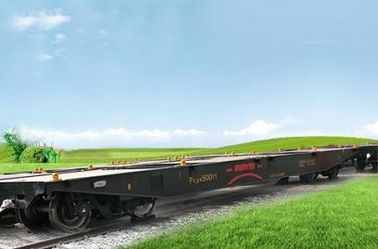

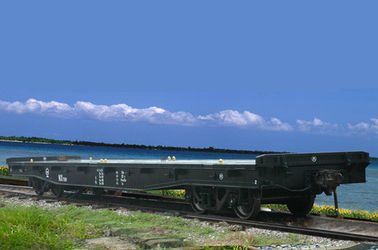

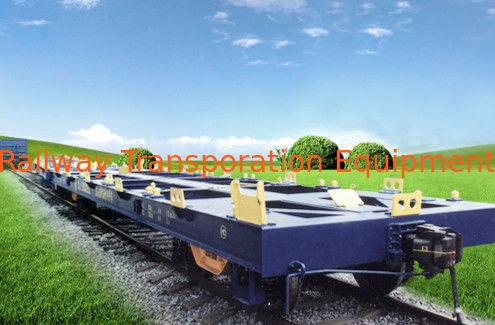

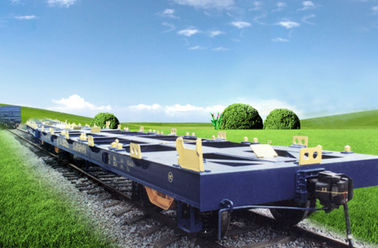

NX70(NX70 H)Dual-purpose or container Flat wagon..
Summary: This dual-purpose container flat wagon can be used as a general-propose flat wagon and container flat wagon, which is suitable for operating on China standard gauge railway. It is mainly comprised of underfame, locking device, end door, bogie, brake equipments, coupler and draft gear, etc. The underframe is of steel-and-wood mixed structure with wood floor. The car adopts turnover locker, ZK5 bogie or ZK6 bogie, air brake system with120 type control valve, NSW type hand brake, 17 type coupler and MT-2 type draft gear...
Main technical parameters:
Loading capacity(t) |
70 |
Tare weight(t) |
≤23.8 |
Operating speed (km/h) |
120 |
Min. radius of curvature negotiable (m) |
145 |
Container specification: Two 20ft One 40ft or 45ft or 48ft |
