| Place of Origin: | Shanxi China |
| Brand Name: | CRRC |
| Certification: | AAR, GOST,IRIS, TSI, OEM |
| Minimum Order Quantity: | 20 |
|---|---|
| Price: | 45000-60000 |
| Delivery Time: | 3 months |
| Payment Terms: | L/C OR T/T |
| Supply Ability: | 10000 SET/ YEARS |

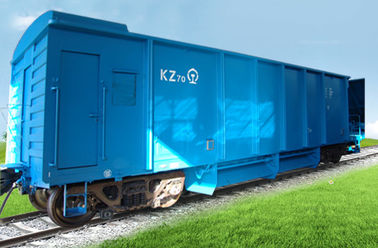

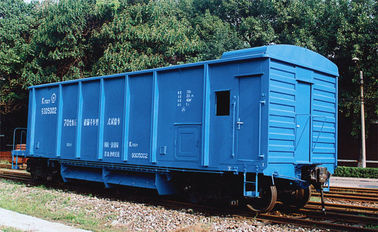

This hopper wagon utilized for new-and-old line ballasting service and other bulk goods transportation is suitable for operating on China standard gauge railway. It is mainly comprised of hopper wagon body, bottom door, top and bottom drive mechanisms, air control pipeline device, bogie, brake equipments, coupler and draft gear, etc. Unloading outlets installed on the both side and center of car bottom can be operated by pneumatic control or manual control. The car body and bottom door are of all steel welded structure, and the car adopts ZK5 bogie or ZK6 bogie, air brake system with120 type control valve, NSW type hand brake, 17 type coupler and MT-2 type draft gear...
|
Loading capacity(t)
|
70
|
|
Tare weight(t)
|
≤23.8
|
|
Volume(m3)
|
42
|
|
Quantity of unloading outlet:
Two are on the both sides, and two are on the center
|
|
|
Operating speed (km/h)
|
120
|
|
Min. radius of curvature negotiable (m)
|
145
|
