Name: CRRC K26A meter gauge Meter Gauge Ballast Hopper wagon for Malaysia
Brand: CRRCTaiyuan Co., Ltd
Price: 52,500.00 USD
Availability: InStock

Home Products hopper wagon

CRRC K26A meter gauge Meter Gauge Ballast Hopper wagon for Malaysia

Product Details:

Place of Origin:	Shanxi China
Brand Name:	CRRC
Certification:	AAR, GOST,IRIS, TSI, OEM

Payment & Shipping Terms:

Minimum Order Quantity:	20
Price:	45000-60000
Delivery Time:	3 months
Payment Terms:	L/C OR T/T
Supply Ability:	10000 SET/ YEARS

Contact Now

Detailed Product Description

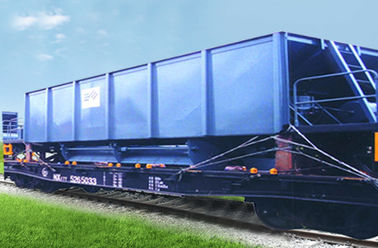

K26A 1000mm Meter Gauge Ballast Hopper wagon for Malaysia specially utilized for ballast transportation is suitable for operating on Malaysia railway with 1000mm gauge. The hopper wagon is mainly comprised of main underframe, unloading hopper, drive device, meter gauge bogie, vacuum brake equipment, hand brake, coupler and draft gear, etc. The underframe is of all steel welded structure, and the car has eight unloading outlets including 4 outside doors and 4 inside doors. Ballast distributing mechanism adopts manual control, which required one person to control the opening and closing of two bottom doors as a pair. The car adopts meter gauge ride control type bogie, vacuum brake equipment, chain type hand brake and interlock-2 type coupler...

Main technical parameters:

Loading capacity(t)	38
Tare weight(t)	18
Volume (m³)	25
Operating speed (km/h)	80
Min. radius of curvature negotiable (m)	60
