| Place of Origin: | China |
| Brand Name: | CRRC |
| Certification: | IRIS and OEM |
| Model Number: | 05 |
| Minimum Order Quantity: | 5 |
|---|---|
| Packaging Details: | carton or wooden case or according to clients’require |
| Delivery Time: | 15 |
| Payment Terms: | L/C OR T/T |
| Supply Ability: | 5000/month |

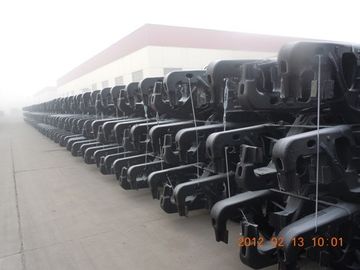

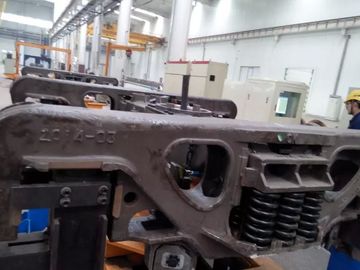

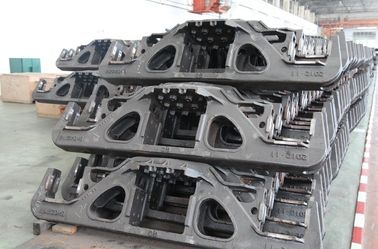

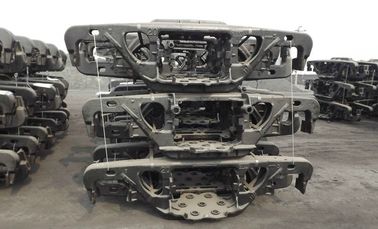

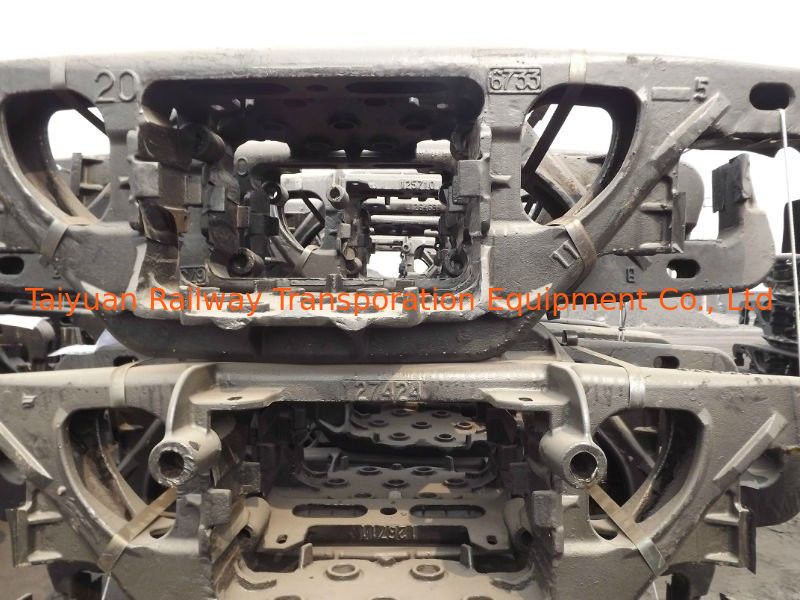

casting Bogie side frame, railway bogie frame, railway side frame
Bogie frameSpecification: K2, K6, 18-100,18-578, 18-194,18-1750,Barber-S2,Barber S-2-HD-9C, HS MKⅦ
Material of railway bogie frame: B Grade steel, B+ Grade steel, 20ГЛ,
Material Standard: TB/T2942-1999, AAR, OST 32.183-2001, AAR M-201
Application: South Africa railway parts, United States railway freight car fittings, Russia train parts, Railway wagon parts
Process:The railway side frame is made byrobot automatic core making and setting production line, using resin hardening sodium silicate-bonded sand for modeling and whole-core core making and refining outside the furnace technology. It can realize whole-core robot automatic core making and setting production.
