| Place of Origin: | China |
| Brand Name: | CRRC |
| Certification: | AAR, GOST,IRIS, TSI, OEM |
| Model Number: | 08 |
| Minimum Order Quantity: | 10 |
|---|---|
| Packaging Details: | carton or wooden case or according to clients’require |
| Delivery Time: | 3 months |
| Payment Terms: | L/C OR T/T |
| Supply Ability: | 5000 SET/ YEARS |
CRRC Taiyuan Co., Ltd. is a main factory for making and overhauling of industrial diesel locomotive and electric locomotive, which can manufacture 10000 sets and repair 5000 sets. and our main advantagment is Railway freight wagon , products include the design and manufacture of gondola wagon, ballast hopper wagon, coal hopper wagon , flat wagon, tank trucks, automatic dumping cars etc...

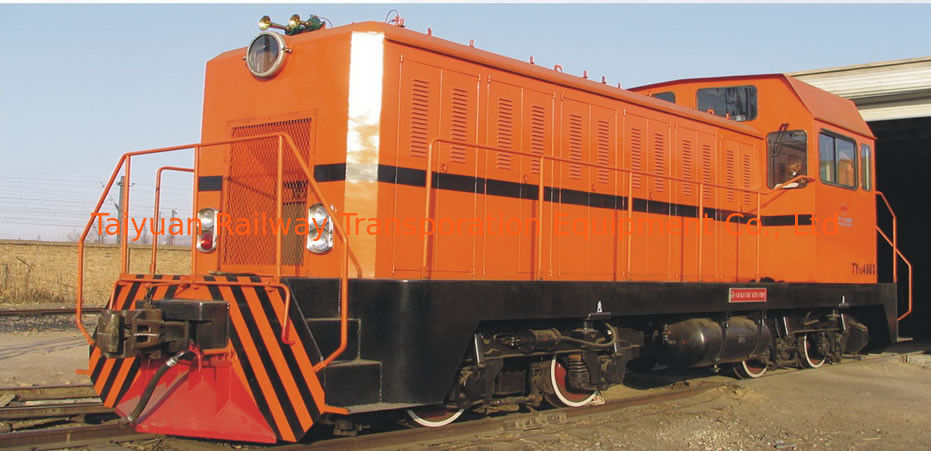

TY360 industrial diesel locomotive
The model TY360 industrial diesel locomotives is mainly used in the industrial and mine enterprises, forestry industry, construction fields and local railway for transportation and switching service. It has been succeeded in molten iron tank transportation in the steelworks. The transmission system is that the hydraulic transmission box driven by the engine transfers the power to the gearbox by universal shaft. The gearboxes are on the axles to rotate the wheel and make the car run..
|
Dimension ( LxWxH) (mm) |
11420x3200x4300 |
|
Axle arrangement |
B-B |
|
Length between bogie pivot centers |
5400 |
|
Wheel base/td> |
1800 |
|
Axle Number |
2 |
|
Track gauge (mm) |
1435 |
|
Height from top of rail to coupler center(mm) |
880±10 |
|
Draft gear |
13 type couple, buffers on both end |
|
Wheel diameter ( mm) |
840 |
|
Min. curve radius (m) |
60 |
|
Max. Speed (shunt/small operation) (km/h) |
30/60 |
|
Transmission mode: |
Double cycling disk hydraulic transmission,hydraulic |
|
Brake mode |
Air brake and hand brake |
|
Coupler |
No.13 coupler and ST buffer |
|
Power of the engine(HP) |
360/380 |
|
Max. starting tractive effort(KN) |
105 |
