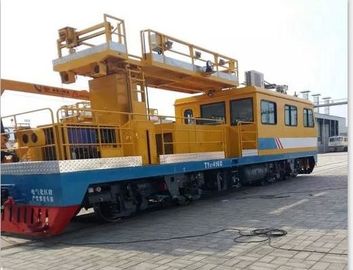

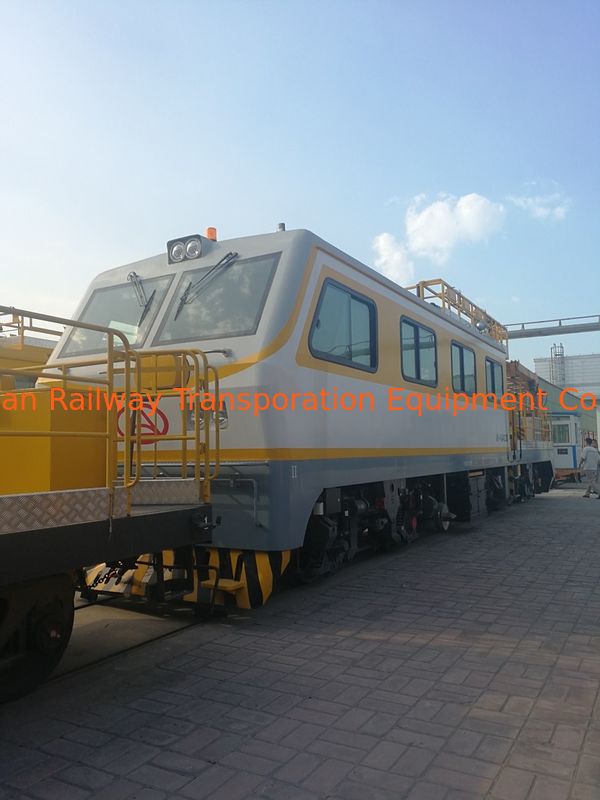

GCY500 railway maintenance vehicle manufacture China

GCY500 railway maintenance vehicle manufacture China

    • GCY500 railway maintenance vehicle manufacture China
    • GCY500 railway maintenance vehicle manufacture China
    • GCY500 railway maintenance vehicle manufacture China
  • GCY500 railway maintenance vehicle manufacture China

    Product Details:

    Place of Origin: Shanxi China
    Brand Name: CRRC
    Certification: AAR ,IRIS and OEM

    Payment & Shipping Terms:

    Minimum Order Quantity: 6
    Delivery Time: 3 months
    Payment Terms: L/C OR T/T
    Supply Ability: 1000 SET/ YEARS
    Contact Now
    Detailed Product Description

    GCY500 maintenance vehicle type is the new generation catenary work car developed by CRRC Taiyuan Co., Ltd. in 1995. It passed the Ministry of Railway’s technology appraisal with leading domestic level in 1996. It is suitable for the catenary construction, inspection and repair, and installation. It can also serve as a tow car.

    Dimension ( LxWxH) (mm)

    11185x2800x4750

    Axle arrangement

    B

    Axle Number

    2

    Track gauge (mm)

    1435

    Height from top of rail to coupler center(mm)

    880±10

    Draft gear

     13 type couple, buffers on both end

    Wheel diameter ( mm)

    915

    Min, radius of curvature negotiated (m)

    100

    Max. Speed (km/h)

    100

    Working speed (km/h)

    0-15

    Transmission mode:

     Hydraulic-mechanical transmission

    Rating power of engine (KW)

     175/206/224

    ,
