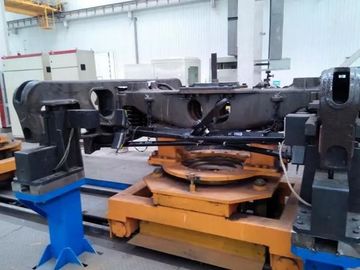

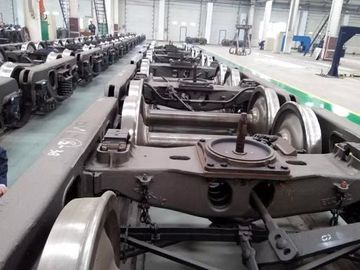

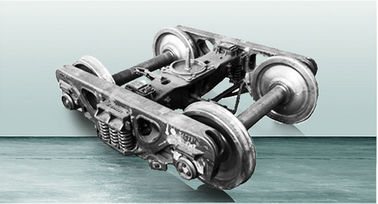

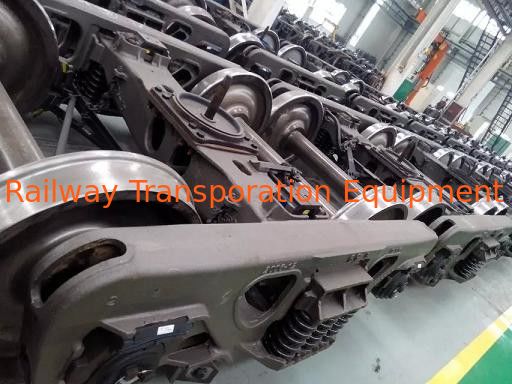

AAR Gauge 1435mm of railway bogie

AAR Gauge 1435mm of railway bogie

    • AAR Gauge 1435mm of railway bogie
    • AAR Gauge 1435mm of railway bogie
    • AAR Gauge 1435mm of railway bogie
    • AAR Gauge 1435mm of railway bogie
  • AAR Gauge 1435mm of railway bogie

    Product Details:

    Place of Origin: China
    Brand Name: CRRC
    Certification: UIC, AAR, RSFZHT, UKRAINE , IRIS and OEM

    Payment & Shipping Terms:

    Minimum Order Quantity: 2
    Packaging Details: no packaging or according to clients’require
    Delivery Time: 25 days
    Payment Terms: L/C OR T/T
    Supply Ability: 5000/month
    Contact Now
    Detailed Product Description
    Material: 20G

    This 1435 railway bogie is suitable for various freight cars with standard gauge, 21t axle load and the maximum operating speed of 120km/h. It has such features as three-piece casting steel bogie structure, but adopts particular spring plank and rocker seat, etc. Which is similar to the swing mechanism of passenger car, and has two-staged horizontal rigidity to increase the horizontal flexibility of the car. The bogie is comprised of wheelset and bearing, bolster assembly, side frame assembly, elastic suspension device and damping device, constant contact side bearing and brake rigging, etc.

    Gauge 1435mm
    Axle Load 25 ton
    Tare Weight 4.7 ton
    Wheel Diameter 840mm
    Wheel Base 1750mm
    Axle Type RD2
    Brake Ratio 4.0

    The gauge,axle load,and bogie center plate height of the
             bogie can be adjusted according to the clients' requests....
